添加泪滴
1,单个泪滴:Route->Gloss->AddFillet,单击需要添加泪滴的地方.
2,全部泪滴

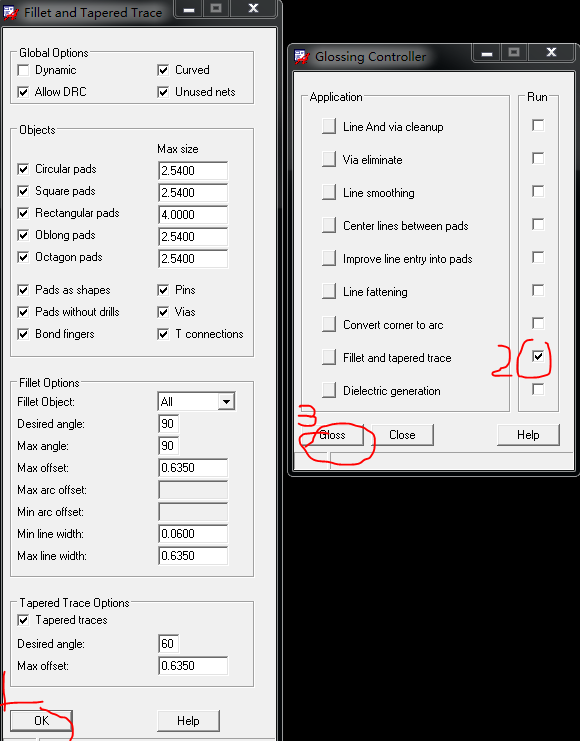

Route->Gloss->parameter…
只能勾择 fillet and tapered trace 这一项;如果勾选其他选项,可能会导致走线变化。
